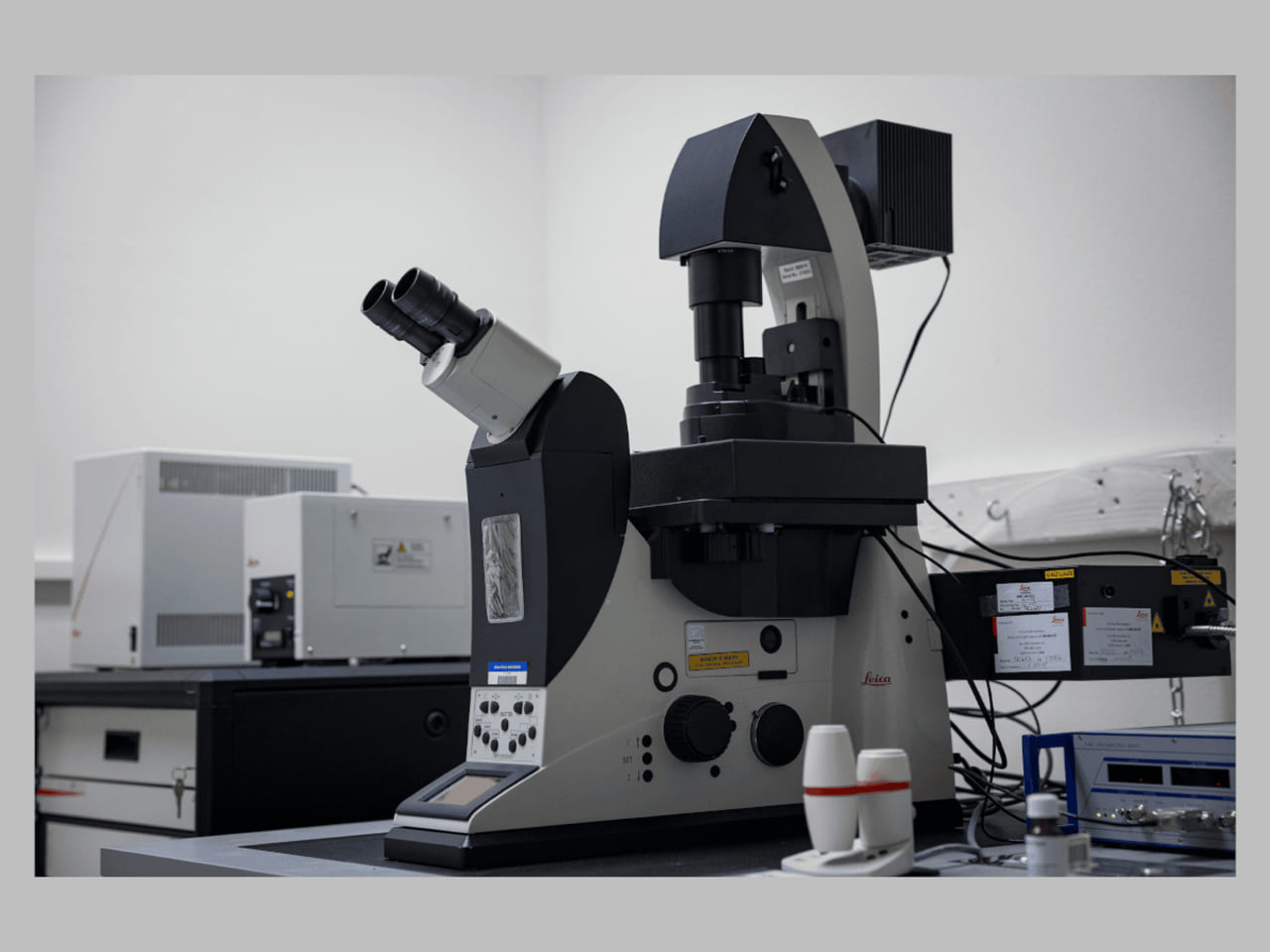

Leica GSD-3D Super-Resolution Microscope

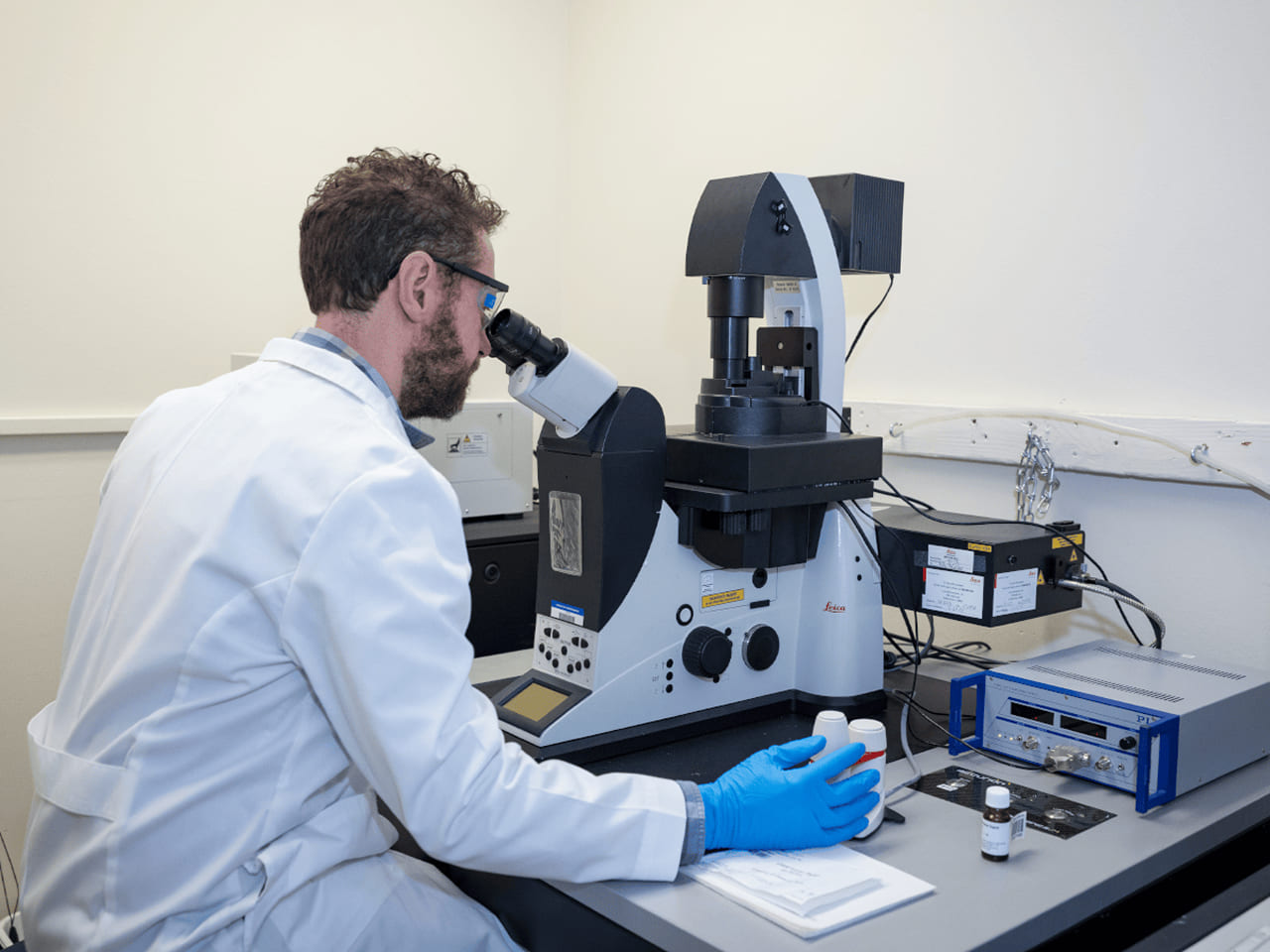

Lab workstation equipped with a computer and the Leica GSD-3D Super-Resolution Microscope
  • Inverted LeicaDMI6000B microscope
  • Multiple imaging modes
    • GSD super-resolution
    • Fully automated TIRF (also available with GSD)
    • EPI fluorescence (also available with GSD)
    • Brightfield
    • DIC/PH
  • Lateral resolution of 20 nm and axial resolution of 50 nm, providing advanced 3D localization of cellular structures
  • Accurion Halcyonics i4 Vibration Isolation table to minimize drift
  • Field of view
    • 18 x 18 μm (GSD high power mode)
    • 40 x 40 μm (GSD large field of view mode)
    • 50 x 50 μm (TIRF)
  • 3 objectives
    • 10x, NA 0.30, HCX PL FLUOTAR (Air)
    • 100X, NA 1.47 (Oil)
    • 160X, NA 1.43, HC Pl Apo Corr GSD(Oil)
  • 3 lasers (500mW) for multicolor imaging
    • 488 nm
    • 532 nm
    • 642 nm
  • Andor iXon3 897 EMCCD camera
  • Real-time image processing and display of results as they are acquired
  • Image acquisition via LAS AF software running on an HP Z620 workstation
