Olympus-based full-color imaging system

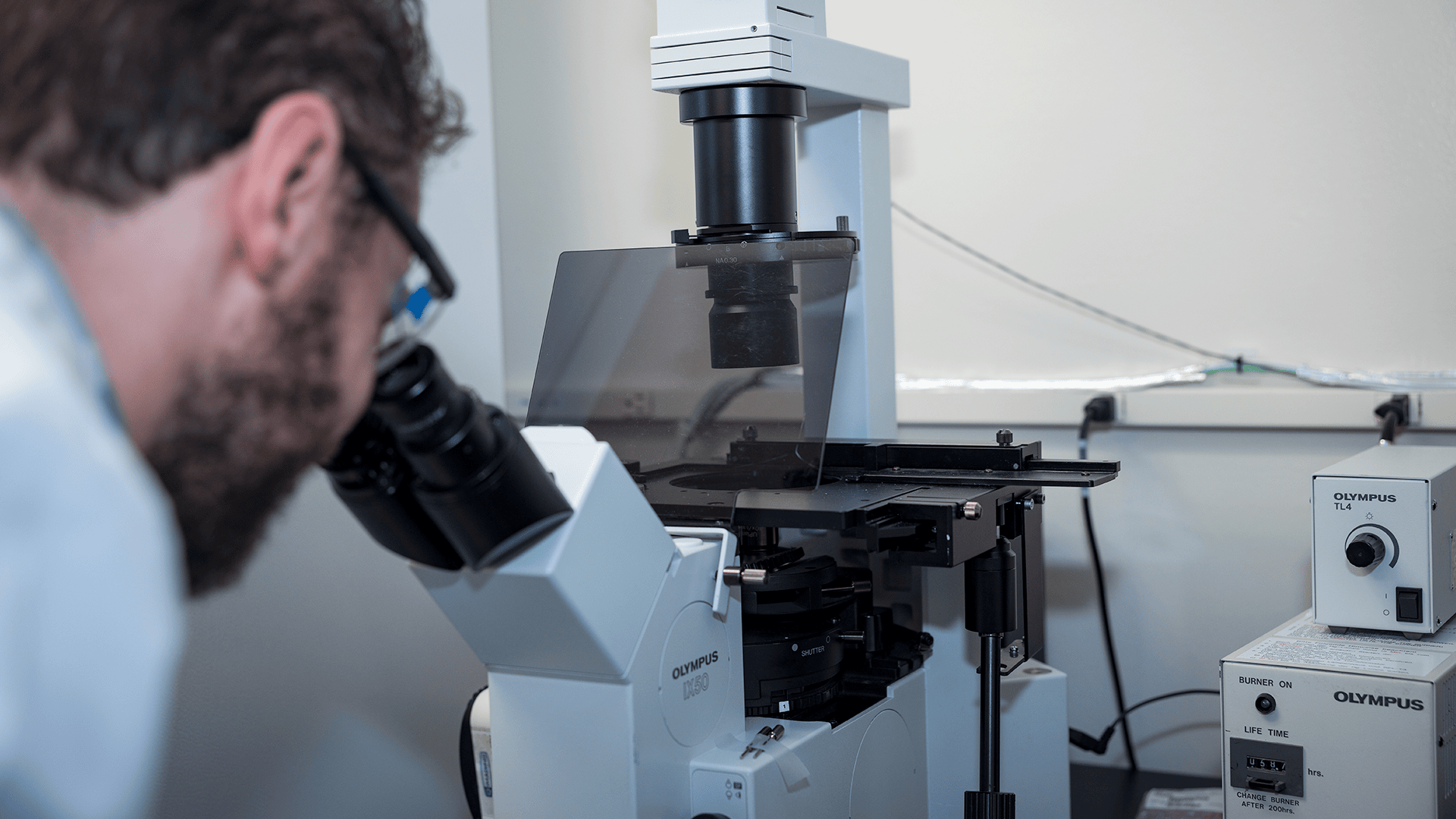

Lab workstation equipped with a computer and the Olympus-based full-color imaging system
  • Olympus IX 50 microscope
  • Transmitted light for brightfield imaging
  • Perfect for imaging of histology sections.
  • EPI fluorescence
  • Filter cubes for DAPI, TRITC and Texas Red.
  • 6 objectives
    • 2x, NA 0.06, Plan N (Air)
    • 4x, NA 0.13, UPlanFl (Air)
    • 10x, NA 0.30, UPlanFl (Air)
    • 20x, NA 0.40, LCPlanFl Ph1 (Air)
    • 40x, NA 0.60, LCPlanFl Ph2 (Air)
    • 60x, NA 0.70, LCPlanFl (Air)
  • Qimaging MicroPublisher 5.0 Digital CCD Color Camera
    • 5-million-pixel sensor; 2560 x 1920
    • 3.4μm x 3.4μm pixel size
    • Previewing and focusing in real time
    • Frame rate - 25fps (full field of view)
