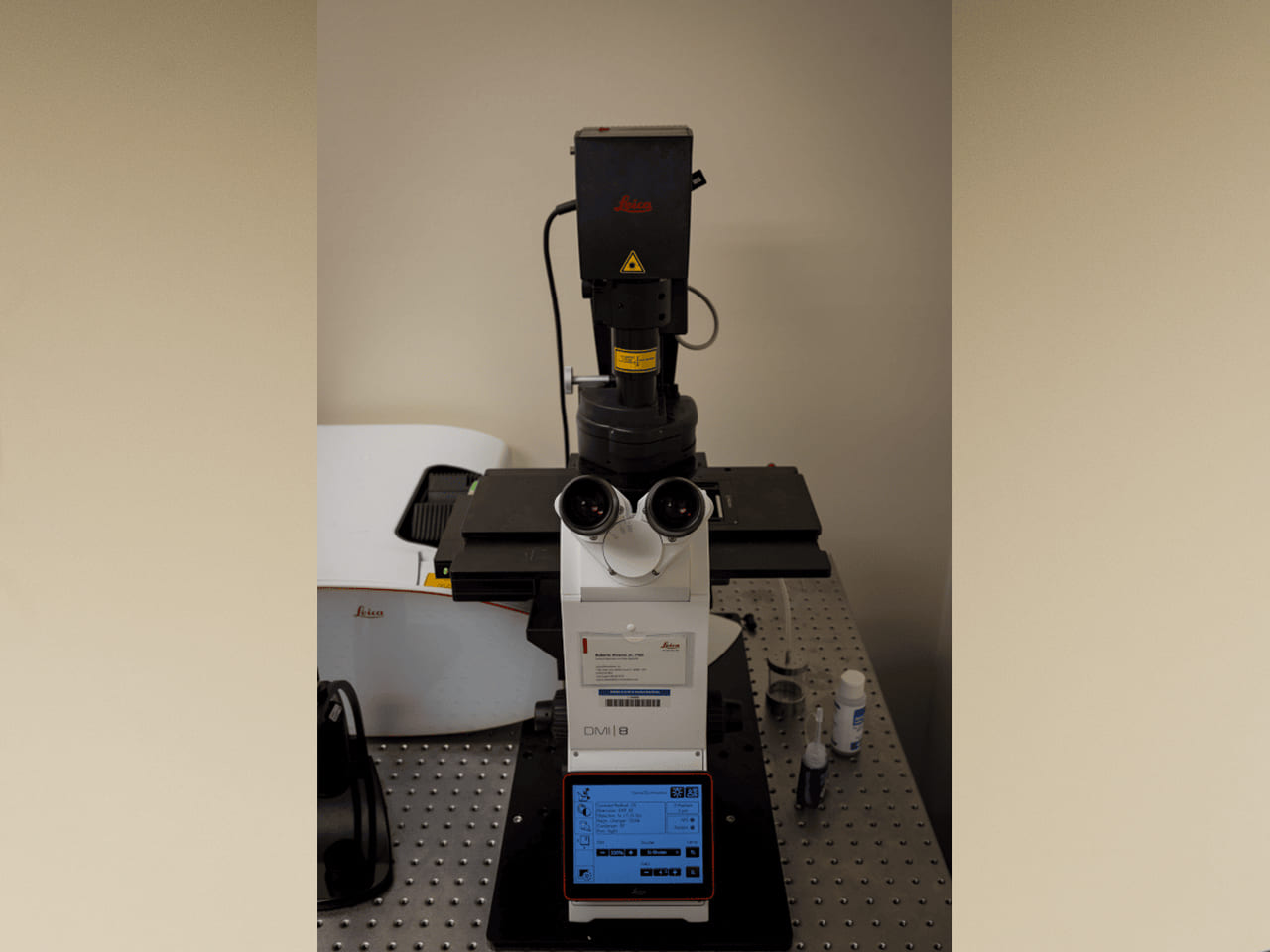

Leica Stellaris 5 Confocal Microscope

Lab workstation equipped with a computer and the Leica Stellaris 5 Confocal Microscope
  • Leica DMi8 inverted automated fluorescence microscope.
  • 5 objectives
    • 5x, NA 0.15, HC PL FLUOTAR (Air)
    • 10x, NA 0.40, HC PL APO CS2 (Air)
    • 20x, NA 0.75, HC PL APO CS2 (Air)
    • 40x, NA 1.30, HC PL APO CS2 (Oil)
    • 63x, NA 1.40, HC PL APO CS2 (Oil)
  • 6 solid-state diode lasers for multicolor imaging
    • 405 nm
    • 448 nm
    • 488 nm
    • 514 nm
    • 561 nm
    • 638 nm
  • Fast laser scanning head (tunable speed large FOV 22 mm linear, cooled point scanner)
  • Motorized DIC and phase contrast
  • 4 Peltier-cooled SuperResolution HyD S High PDE SiPM Detectors allowing for true photon counting, power counting & analog modes, and BF imaging.
  • Adaptive Focus Control with 20 nm repositioning accuracy
  • High temporal (131 FPS, 512 x 16 x 4 Spectral + 1 BF for 655 FPS total) and spatial (8K x 8K) resolution
  • LAS X Software controls this instrument and is capable of 3D GPU-based visualization, online linear unmixing, live data mode, FRET, FRAP, and FLIP imaging modes.

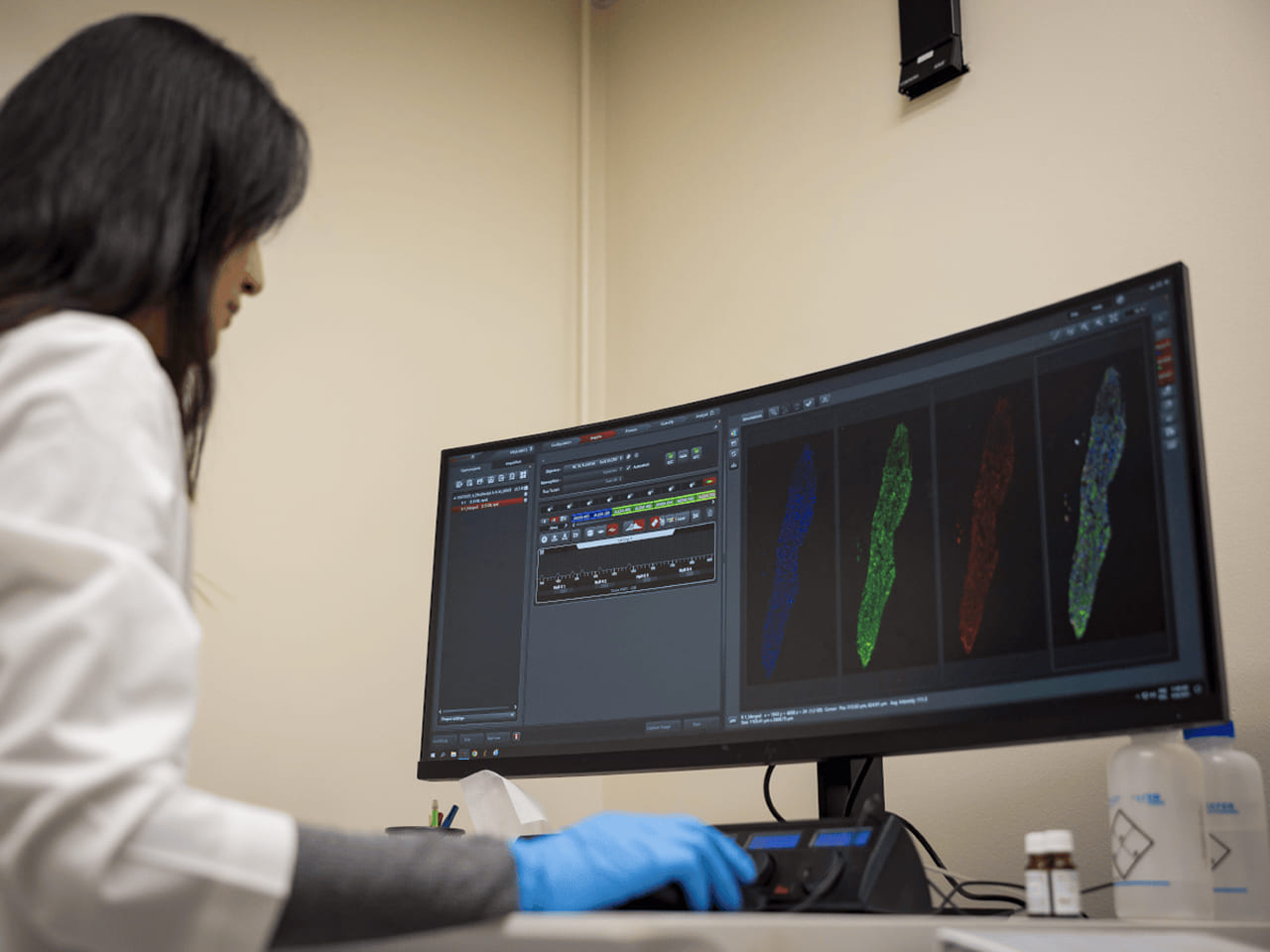

  • High-end Windows 10-based computer (HP CUDA Workstation) and a 38" high-resolution curved monitor
