3i Lattice LightSheet Microscope

Lab workstation equipped with a computer and the 3i Lattice LightSheet Microscope

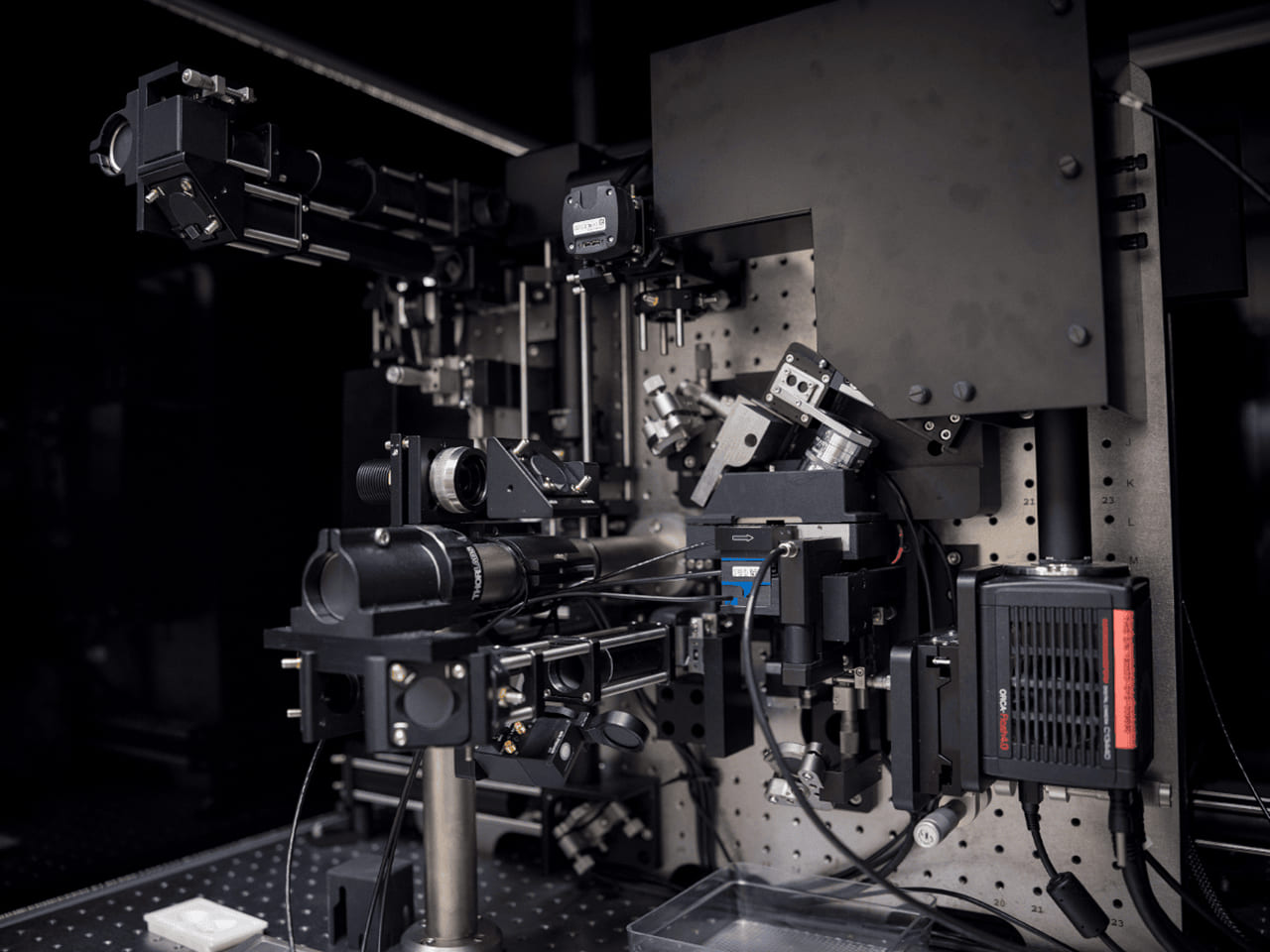

  • The HSTRI Core manages a custom-built 3i Lattice LightSheet Microscope that is capable of 3D live cell imaging.
  • The Lattice LightSheet is a system designed to push the spatial and temporal resolution limits in live cell imaging.
  • Cylindrical lenses stretch and collimate the beam to form a sheet projected onto a spatial light modulator (SLM).
  • The SLM generates an optical lattice of Bessel beams.
  • An annular mask acts as a zero-order filter, removing artifacts and lengthening the sheet.
  • Lightsheet thickness is 0.4 µm at 50 µm length.
  • Galvos dither the sheet in X and sweep the sheet in Z.

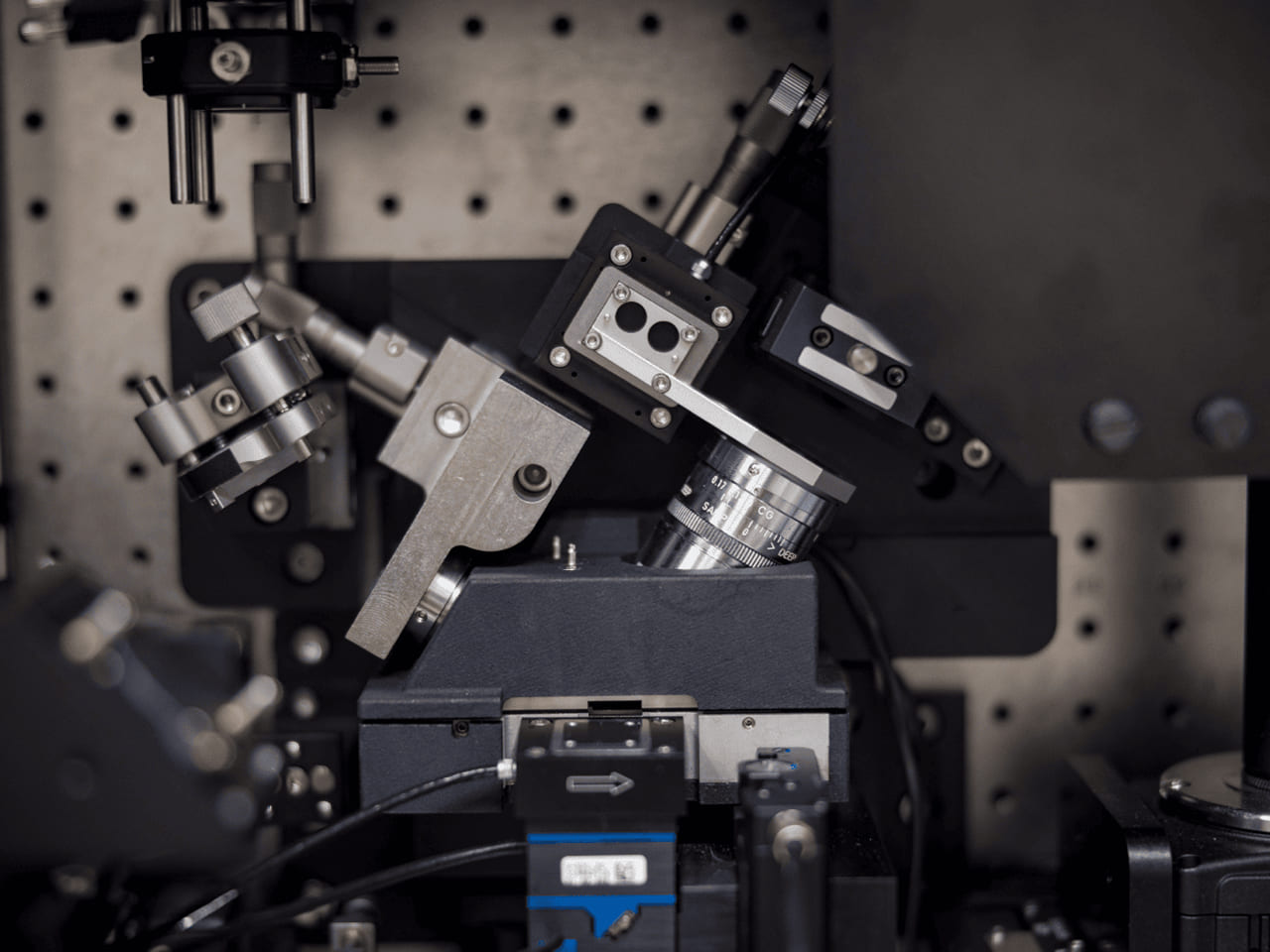

  • 25x/1.1NA 28x/0.71NA water immersion detection objectives
  • Piezo x,y translation stage and piezo imaging objective control.
  • Images are acquired using a high-speed high-resolution 2Kx2K Hamamatsu ORCA-Flash4.0 V3 sCMOS camera.
  • Samples are excited with 405, 488, 560, and 642 nm lasers.
  • Image acquisition and analysis are performed by 3i SlideBook software (v. 6) running under Windows 10 on a powerful desktop computer comprised of Dual 16-Core Xeon Gold 2.9GHz processors, 128GB RAM, 8GB NVIDIA Quadro RTX4000 workstation graphics card, 512GB OS SSD, 8TB Fast Acquisition Drive, and 20TB additional storage.
  • The system is also capable of Structured Illumination Microscopy (SIM), which allows breaking of the diffraction limit for single molecule imaging and photomanipulation.
